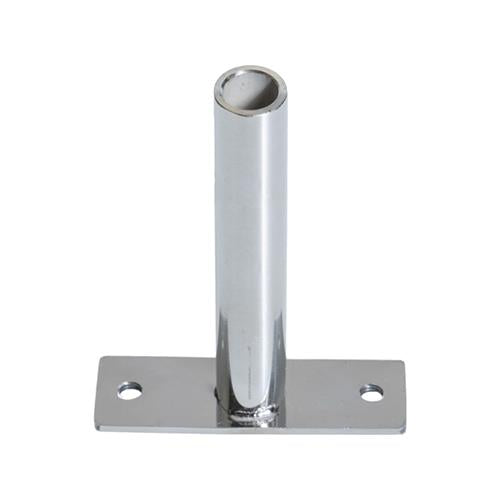

ThermoSphere Mounting Spigot for Double Mount Towel Bars (TBSD-800)

The ThermoSphere Mounting Spigot for Double Mount Towel Bars is the essential hardware component designed to simplify and speed up the installation of ThermoSphere’s Double Mount Towel Bars. Precision-engineered from high-grade 304 stainless steel, these robust spigots ensure a secure, concealed fit for a clean, modern aesthetic in any bathroom.

Each towel bar requires two spigots—one at each end—for optimal stability and performance. The spigots are designed to be installed in advance, allowing electricians and tilers to pre-run wiring and complete tiling without delays. With a maximum tile depth of 35mm, these spigots are engineered to maintain sufficient exposed length for a reliable connection with the towel bar.

Compatible exclusively with ThermoSphere’s patented mounting systems or direct installation onto a solid wall substrate, this system ensures accurate alignment and durable support—perfect for high-end residential or commercial bathroom projects.

Key Features:

Designed for use with ThermoSphere Double Mount Towel Bars
Pre-install spigots and wiring to save time before tiling
Compatible with ThermoSphere mounting systems or solid wall substrates
Maximum tiling depth: 35mm for secure post-tile fitting
Made from 304 stainless steel for durability and corrosion resistance
Each towel bar requires 2 spigots (sold separately)
Ideal for creating a floating, seamless finish

Technical Data

Manufacturer	ThermoSphere
Code	TBSD-800
Compatible with	Double mount bars
Material	304 Stainless Steel
Spigot Length	80mm
Spigot diameter	Ø12.7mm
Plate width	30mm
Plate height	65mm
Plate thickness	2mm
Fixing hole centres	48mm
Fixing hole size	M5
Weight	60g
Country of origin	UK
Warranty	10 Years

ThermoSphere Towel Bar Spigot For Double Ended Bars (80mm)
