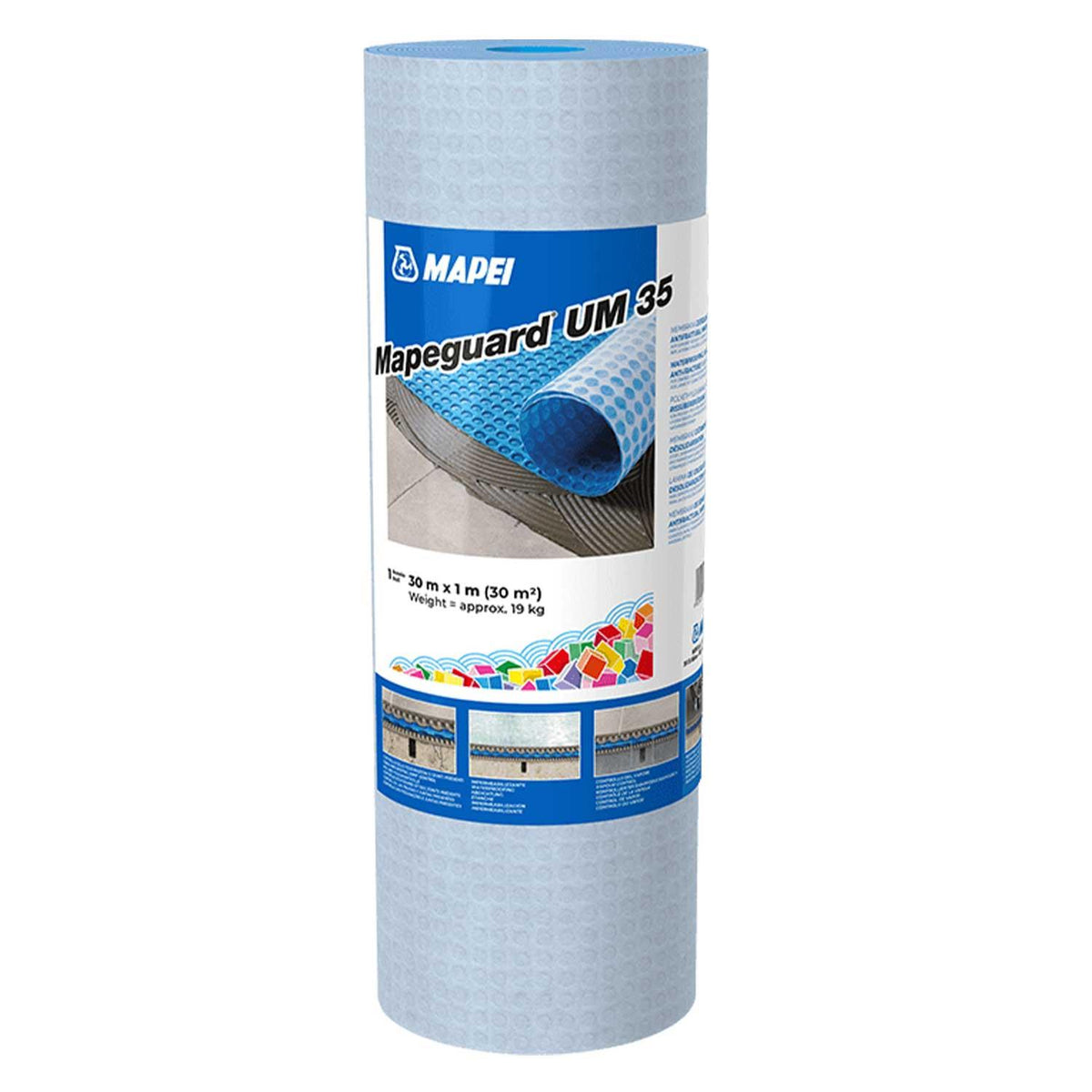

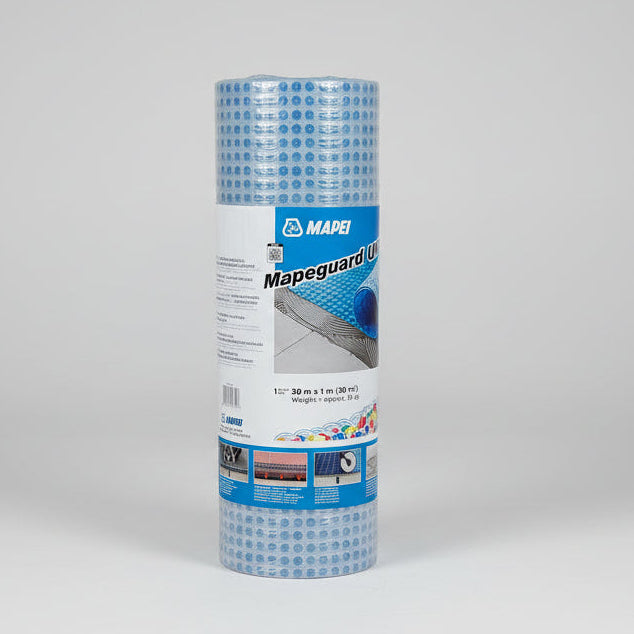

Mapei Mapeguard UM 35 Uncoupling Membrane 30m
PRODUCT DETAILS
Mapei Mapeguard UM 35
Waterproofing, uncoupling and anti-fracture membrane for cracked/damp or not-fully-cured substrates before installing ceramic and stone tiles (internal & external).
Key benefits
- Waterproof membrane to help protect substrates from water infiltration
- Uncoupling layeruto help reduce stress transfer from the substrate to the tiled finish
- Anti-fracture performance to help manage cracks in the substrate
- Vapour compensation channels to allow moisture in underlying layers to release
- Suitable for balconies/terraces, bathrooms, and overlaying existing flooring
- Semitransparent for easier checks of adhesive coverage and cutting around penetrations
- Helps distribute heat more evenly over heated floors
Technical details
(Typical values — match to your SKU/roll size on the product)
| Product type | Waterproofing / uncoupling / anti-fracture membrane |
| Construction | Honeycomb HDPE layer (rough surface) with polypropylene fabric backing |
| Colour | Blue |
| Roll sizes (packaging) | 5 m × 1 m and 30 m × 1 m rolls (range packaging) |
| Suitable tile types | Ceramic and stone tiles (incl. overlays onto existing flooring) |
| Minimum tile size | Do not use tiles smaller than 5 × 5 cm |
| Substrate crack limit (guidance) | Do not apply over cracks/joints with out-of-plane movement or cracks wider than 3 mm |
| Robinson Wheel rating | ASTM C 627 — Extra Heavy Commercial Rating (per TCNA test report) |
| Pull-out strength (typical) | EN 12004 — 0.6 N/mm² (+0.1 / −0.2) |
Where it works best
- Balconies & terraces (waterproofing + uncoupling + vapour compensation)
- Bathrooms and wet areas (use correct joint/edge sealing method for full waterproofing)
- Renovations and overlays onto existing floors (ceramic/resin/wood — where suitable)
- Heated floors (helps even heat distribution)
Important notes
- Do not use over structural joints or where movement is expected.
- Membrane must be covered with ceramic/stone flooring.
- Follow the recommended system components for sealing seams/edges in wet or external areas.
